Hayter Harrier 48 BBC 493F

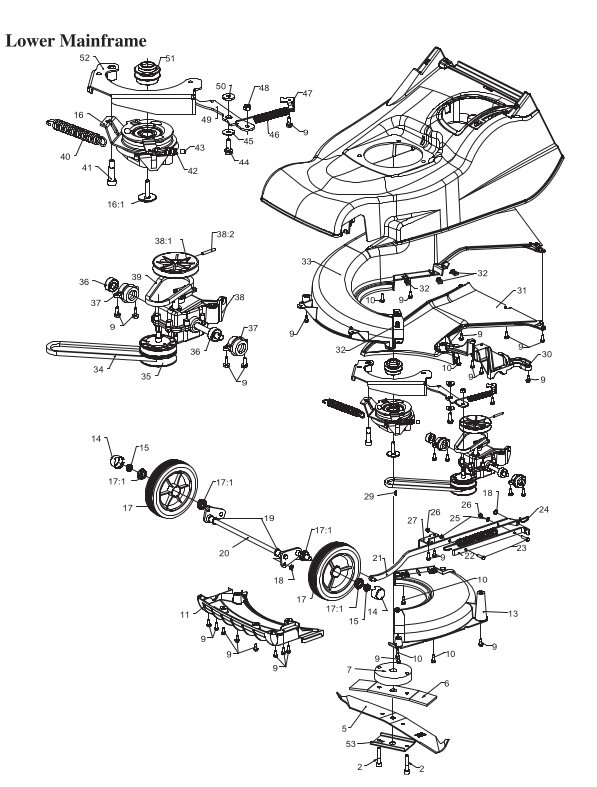

493F Lower Mainframe 310000001 to 312999999

No.	Part	Description	Price £
2	HY-111-3302	SCREW SOC HD CAP M10X5	1.72	Add to Cart (out of stock)
5	HY-480149	Call 01732 441333
6	HY-111-2267-03	FORMER BBC BLADE	21.53	Add to Cart (out of stock)
7	HY-111-3227-03	PACKER BLADE	89.29	Add to Cart (out of stock)
9	HY-09365	SCREW	1.63	Add to Cart
10	HY-09575	SCREW HD TAPTITE(P)	1.62	Add to Cart
11	HY-111-0594	FRONT FINS	27.08	Add to Cart (out of stock)
13	HY-111-0133	UNDERDECK COVER ##	29.57	Add to Cart (out of stock)
14	HY-111-1251	HUB CAP	1.82	Add to Cart
15	HY-HY4486	NUT UNF 1/2"NYLOC EXT	1.58	Add to Cart
16	HY-485007	BLADE BRAKE CLUTCH	243.92	Add to Cart (out of stock)
16.1	HY-ZIS8L030S	SCREW SOC SHLD M10^ DI	12.11	Add to Cart (out of stock)
17	HY-111-1250	WHEEL 7X1.3 \4	30.24	Add to Cart
17.1	HY-HY300154	BEARING	3.46	Add to Cart
18	HY-0201086	WASHER	1.62	Add to Cart
19	HY-410069	BEARING FRONT AXLE	1.63	Add to Cart (out of stock)
20	HY-111-0588	FRONT AXLE W/A	61.33	Add to Cart
21	HY-111-0202	CONNECTING ROD	19.55	Add to Cart
22	HY-111-0672	BAR SPRING TENSION	10.88	Add to Cart (out of stock)
23	HY-09364	SETSCREW M6 X 25	1.56	Add to Cart (out of stock)
24	HY-410050	SPRING COUNTER BALANCE	7.50	Add to Cart (out of stock)
25	HY-09472	WASHER M6X12X1.6 PLAIN	1.46	Add to Cart (out of stock)
26	HY-09544	NUT M6 NYL INS GD 8	1.56	Add to Cart
27	HY-111-0699	BRACKET CONN ROD	9.34	Add to Cart (out of stock)
29	HY-1662	WOODRUFF KEY NO.505	1.46	Add to Cart
30	HY-111-3303	SUPPORT BRACKET REAR R	10.97	Add to Cart
31	HY-111-0218	THROWPLATE	23.76	Add to Cart
32	HY-410076	LUG NUT	1.82	Add to Cart (out of stock)
33	HY-111-0131	UNDERDECK CHUTE	84.77	Add to Cart
34	HY-111-0771	BELT	11.45	Add to Cart
35	HY-411001	PULLEY	60.28	Add to Cart
36	HY-111-1276	BEARING	6.12	Add to Cart
37	HY-410048	BEARING SUPPORT	8.34	Add to Cart
38	HY-111-3422	111-7934	99.41	Add to Cart (out of stock)
38.1	HY-411019	PULLEY	14.76	Add to Cart (out of stock)
38.2	HY-411023	PIN	1.56	Add to Cart
39	HY-411025	VARIATOR BELT	9.73	Add to Cart
40	HY-343011	SPRING BLADE BRAKE TEN	9.56	Add to Cart (out of stock)
41	HY-ZIS8L030S	SCREW SOC SHLD M10^ DI	12.11	Add to Cart (out of stock)
42	HY-111-0527	SPRING	7.75	Add to Cart (out of stock)
43	HY-510118	SPLIT NIPPLE	17.40	Add to Cart (out of stock)
44	HY-09787	SCREW TAPTITE M8^25 HE	1.46	Add to Cart (out of stock)
45	HY-09270	WASHER PLAIN 5/16X1X16	1.62	Add to Cart (out of stock)
46	HY-HY412004	SPRING VARIATOR	5.95	Add to Cart (out of stock)
47	HY-HY412003	BRACKET CABLE	4.60	Add to Cart (out of stock)
48	HY-09441	NUT	1.62	Add to Cart (out of stock)
49	HY-111-1480	LEVER VARIABLE SPEED	12.11	Add to Cart (out of stock)
50	HY-411031	BUSH PIVOT	8.41	Add to Cart (out of stock)
51	HY-111-0822	PULLEY 51MM PCD	72.05	Add to Cart (out of stock)
52	HY-111-0180-03	BRACKET BBC W/A	83.28	Add to Cart (out of stock)
53	HY-111-2950-03	PLATE CLAMP BBC	24.62	Add to Cart (out of stock)
